RETRACTABLE door screens

legacy screen

MESH OPTIONS

Phantom’s wide range of mesh options help you make any space a more comfortable and attractive living environment. You can choose from mesh types that provide insect protection, natural ventilation, increased privacy, improved daylight, and solar heat control.

The mesh openness factor determines the amount of heat, light, and air that enters a room. A more open fabric allows the breeze and heat to enter the living space, while tighter meshes block more sunlight and keep the space cooler.

These mesh samples are to be used only as a general guide. Please review actual mesh samples for true accuracy.

STYLE
WIDTH
HEIGHT

Insect Mesh

Max 1.5m
(3m in a double)

Max 3m

Solar Mesh

Max 1m
(2m in a double)

Max 3m

Privacy Mesh/Blockout

Max 1m
(2m in a double)

Max 3m

Opening sizes

STYLE
WIDTH

45mm Housing Single

Up to 1.5m wide

45mm Housing Double

Up to 3m wide

60mm Housing Single

Up to 2m wide

60mm Housing Double

Up to 4m wide

DOWNLOAD BROCHURE

Phantom Screens Brochure 2024

WALL screen

latching system

The Phantom Manual Wall Screen uses the same integrated catch & release mechanism as the Legacy Door Screen, making it easy to use, quiet to operate and secure from unintended openings.

mesh options

Phantom’s wide range of mesh options help you make any space a more comfortable and attractive living environment. You can choose from mesh types that provide insect protection, natural ventilation, increased privacy, improved daylight, and solar heat control.

The mesh openness factor determines the amount of heat, light, and air that enters a room. A more open fabric allows the breeze and heat to enter the living space, while tighter meshes block more sunlight and keep the space cooler.

These mesh samples are to be used only as a general guide. Please review actual mesh samples for true accuracy.

Opening sizes

STYLE
WIDTH
HEIGHT
MESH TYPE

Single screen

Max 4.5m

Max 3m

18×14 Insect Mesh; PetLite Mesh

Single screen

Max 3.0m

Max 3m

E-Screen 6% (95% block); E-Screen 10% (90% block)

Double screen

Max 9m

Max 3.0m

18×14 Insect Mesh; PetLite Mesh

Double screen

Max 6m

Max 3.0m

E-Screen 6% (95% block); E-Screen 10% (90% block)

technical information

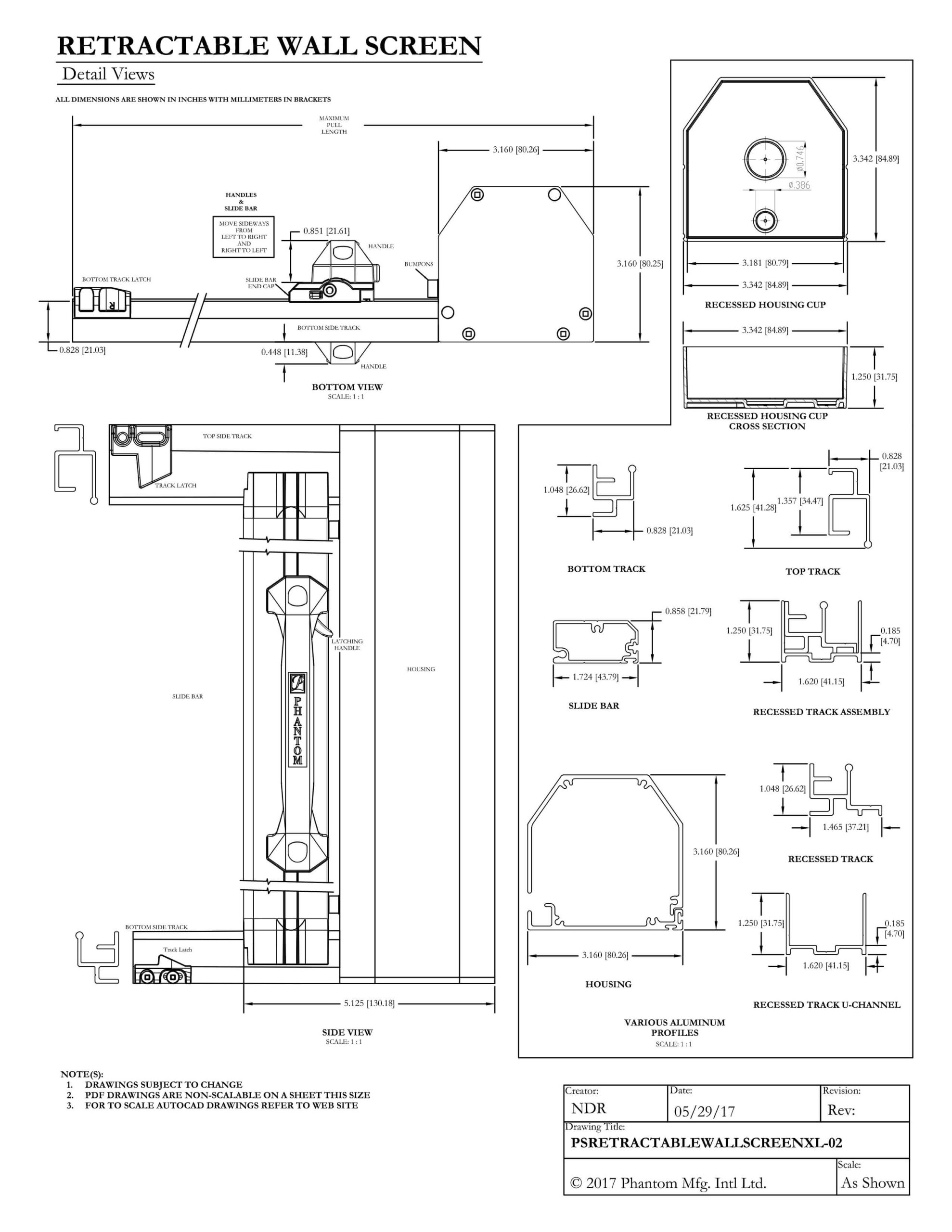

Wall Screen Design Specifications

DOWNLOAD BROCHURE

Wall Screen Brochure

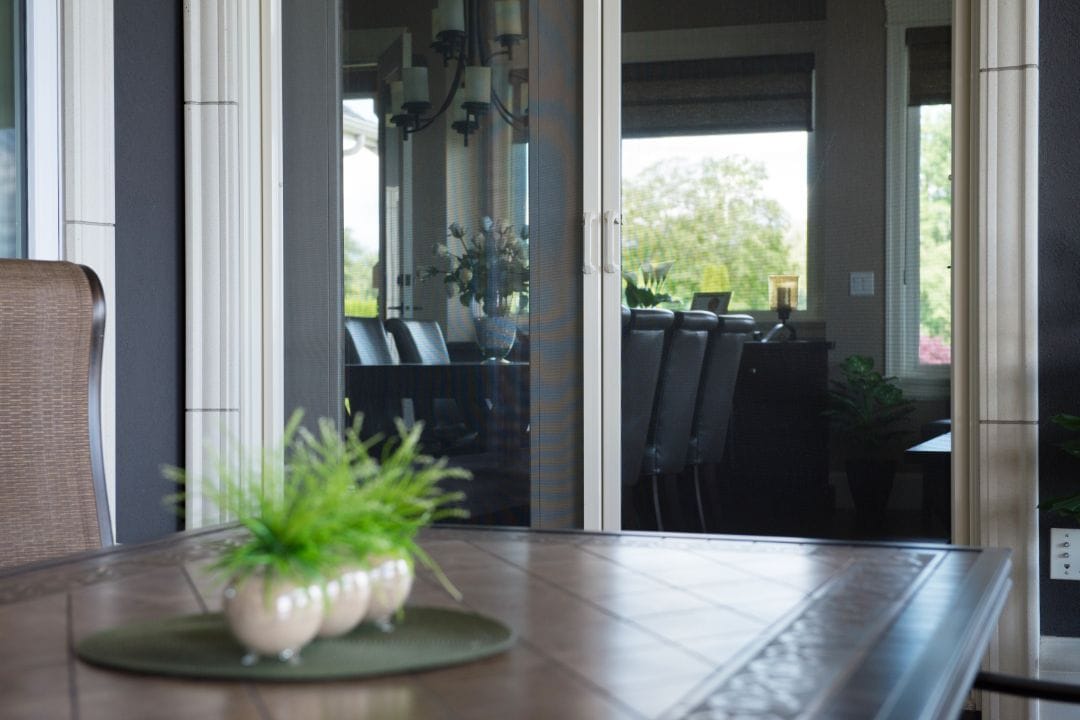

Mesh lock screen

mesh lock

Phantom’s New Mesh Lock Screen Coming Soon!
Phantom is thrilled to announce that our newest product, the Mesh Lock Screen, is coming very soon!

what is a mesh lock

Mesh lock is a new option for our Legacy retractable door screens – with captured edges for mesh retention. This door screen feature completely secures the mesh in the top and bottom tracks to prevent blowouts in breezy conditions, keep pets from escaping and block unwanted pests from entering. If you have door openings in a location with wind, pets or even crawly-critters, mesh lock will be the perfect solution for you!
